Calculate Ridge Metrics

This notebook contains the code required to calculate ridge metrics from the previously created datasets:

  • Ridges

  • Migration Pathways

  • Packets

  • Ridge Area Raster

  • DEM

From these datasets, we will calculate ridge width, amplitude, and migration distance at every ridge-transect intersection and plot ridge amplitude on a map.

Output datasets

The calculate_ridge_metrics function takes the transects, ridges, clipped ridge area (binary) and DEM rasters as input and returns two GeoDataFrames

  • rich transects

  • itx points

Rich Transects

The rich_transects retain the same geometry as the input transects but have the following additional fields:

  • r_000 … r_###: the distance between the channel centerline and that ridge along the specified transect

  • dem_signal: dem values sampled along the transect with 1m sampling

  • bin_signal: binary raster values sampled along the transect with 1m sampling

  • ridge_count_raster: the ridge count along the transect calculated from the number of unique ridges in bin_signal

  • fft_spacing: the fft-derived dominant wavelength from bin_signal - corresponds to a representative spacing between ridges along the transect

Intersection Points

The itx points are the collection of point intersections between the ridges and transects. itx contains the three following ridge metrics in it’s attribute field:

  • pre_mig_dist: the migration distance from the previous ridge. Also referred to as “ridge spacing”

  • ridge_width: the width of the ridge derived from bin_signal measured in px

  • ridge_amp: the amplitude of the ridge derived from dem_signal measured in units of the DEM

itx also contains the following fields:

  • start_distances: the along-transect distance to the intersection point

  • transect_position: vertex position of the intersection point along the transect

  • metric_confidence: a simple metric derived from bin_signal describing the confidence in other ridge metrics.

  • relative_vertex_distances: the relative along-transect distance of the substring that corresponds to the intersection. A relative vertex position of 0.5 is at the exact midpoint of the transect.

  • vertex_indices: the indices of the dem_signal or binary_signal of the transect that correspond to the location of the itx substring

  • dem_signal: the section of the transect’s dem_signal that corresponds to the itx substring

  • dem_signal_selection: a subset of dem_signal if the intersection point is on the first ridge from the channel

  • bin_signal: the section of the transect’s bin_signal that corresponds to the itx substring

  • bool_mask: bin_signal expressed as a boolean array

  • post_mig_dist: the migration distance to the next ridge

  • pre_mig_time: the difference in deposit_year between the intersected and previous ridge

  • post_mig_time: the difference in deposit_year between the intersected and next ridge

  • pre_mig_rate: pre_mig_dist / pre_mig_time

  • post_mig_rate: post_mig_dist / post_mig_time

  • deposit_year: deposit_year of the corresponding ridge

  • substring_geometry: the LineString of the substring corresponding to the intersection

  • geometry: the Point geometry of the intersection

  • swale_dq_adjustment: values up to this index are removed from dem_signal, bin_signal, and bool_mask for calculations. This distance is preserved in the output for subsequent plotting and analysis

from __future__ import annotations

from pathlib import Path

import geopandas as gpd
import matplotlib.pyplot as plt
import rasterio

from scrollstats import calculate_ridge_metrics

# Set input/output paths
# Vector Datasets
ridge_path = Path("example_data/output/LBR_025_ridges_manual_smoothed.geojson")
transect_path = Path("example_data/output/LBR_025_transects.geojson")
packet_path = Path("example_data/input/LBR_025_packets.geojson")
centerline_path = Path("example_data/input/LBR_025_cl.geojson")

# Raster Datasets
bin_clip_path = Path("example_data/output/LBR_025_dem_ridge_area_raster.tif")
dem_clip_path = Path("example_data/output/LBR_025_dem_clip.tif")

# Output
output_dir = Path("example_data/output")

# Read in datasets

# Vector Data
ridges = gpd.read_file(ridge_path)
transects = gpd.read_file(transect_path)
packets = gpd.read_file(packet_path)
cl = gpd.read_file(centerline_path)

# Raster Data
bin_raster = rasterio.open(bin_clip_path)
dem = rasterio.open(dem_clip_path)

# Calculate ridge metrics
rich_transects, itx = calculate_ridge_metrics(transects, ridges, bin_raster, dem)
itx = itx.loc["LBR_025"]

# Join packet info
itx_w_packets = itx.sjoin(packets.drop("bend_id", axis=1))
itx_w_packets = itx_w_packets.reset_index().set_index(
    ["transect_id", "ridge_id", "packet_id"]
)
ridge_metrics_w_packets = itx_w_packets[["ridge_amp", "ridge_width", "pre_mig_dist"]]
ridge_metrics_w_packets.columns = ridge_metrics_w_packets.columns.rename("metrics")

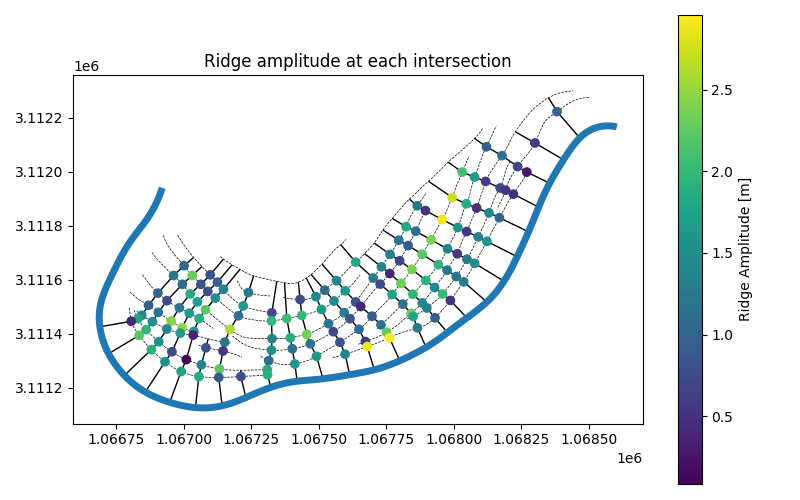

# Plot ridge amplitudes at intersections
# Plot itx
fig, ax = plt.subplots(1, 1, figsize=(8, 5))

ridges.plot(ax=ax, color="k", ls="--", lw=0.5, zorder=0)
transects.plot(ax=ax, color="k", lw=1, zorder=1)
cl.plot(ax=ax, color="tab:blue", lw=5, zorder=2)

itx_w_packets.plot(
    column="ridge_amp",
    ax=ax,
    zorder=2,
    legend=True,
    legend_kwds={"label": "Ridge Amplitude [m]"},
)

ax.set_title("Ridge amplitude at each intersection")

plt.tight_layout()
